tymco Regenerative Air Sweepers

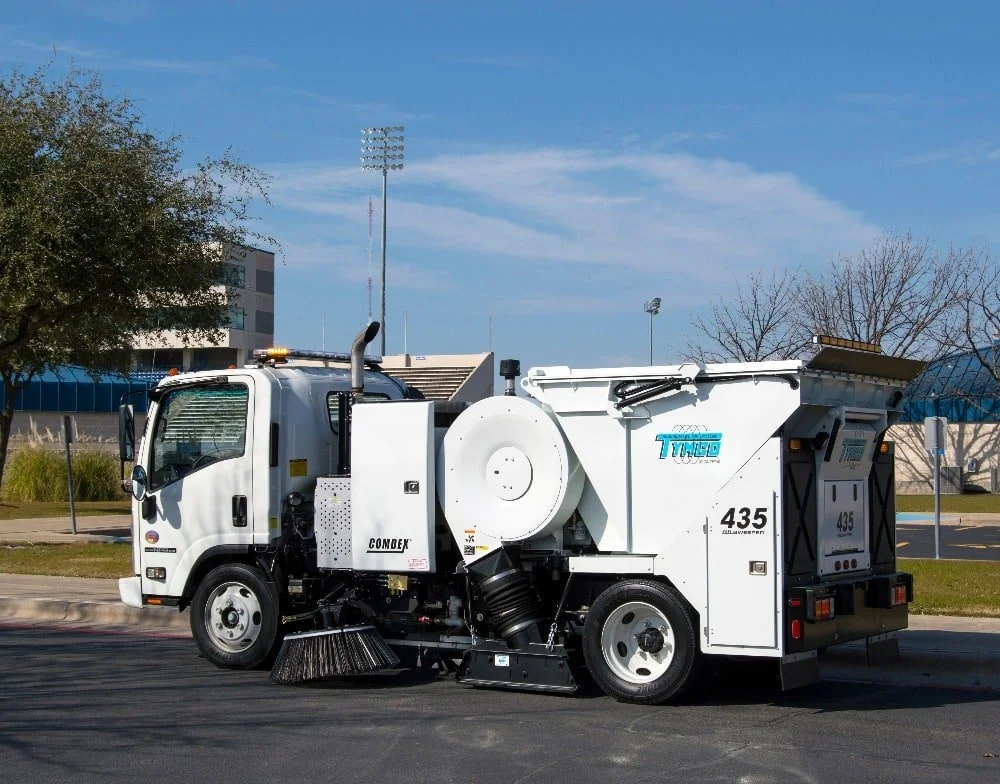

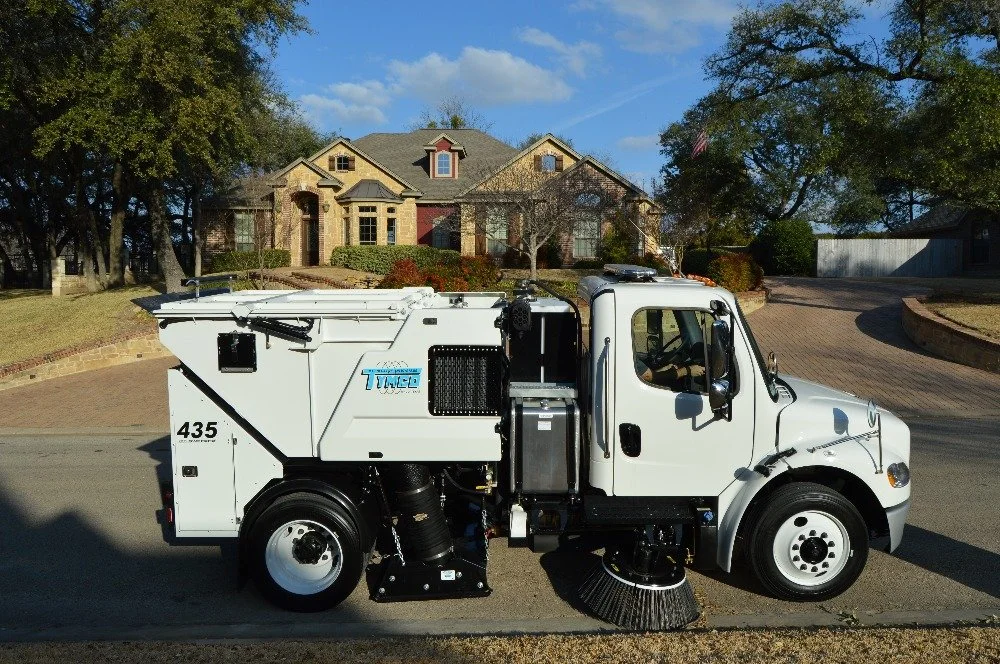

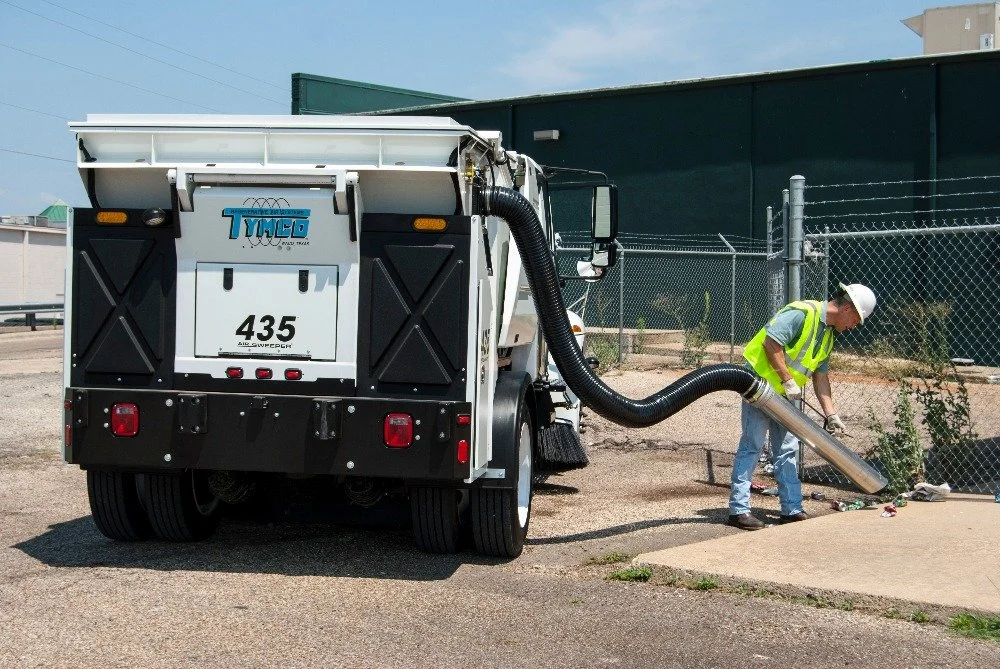

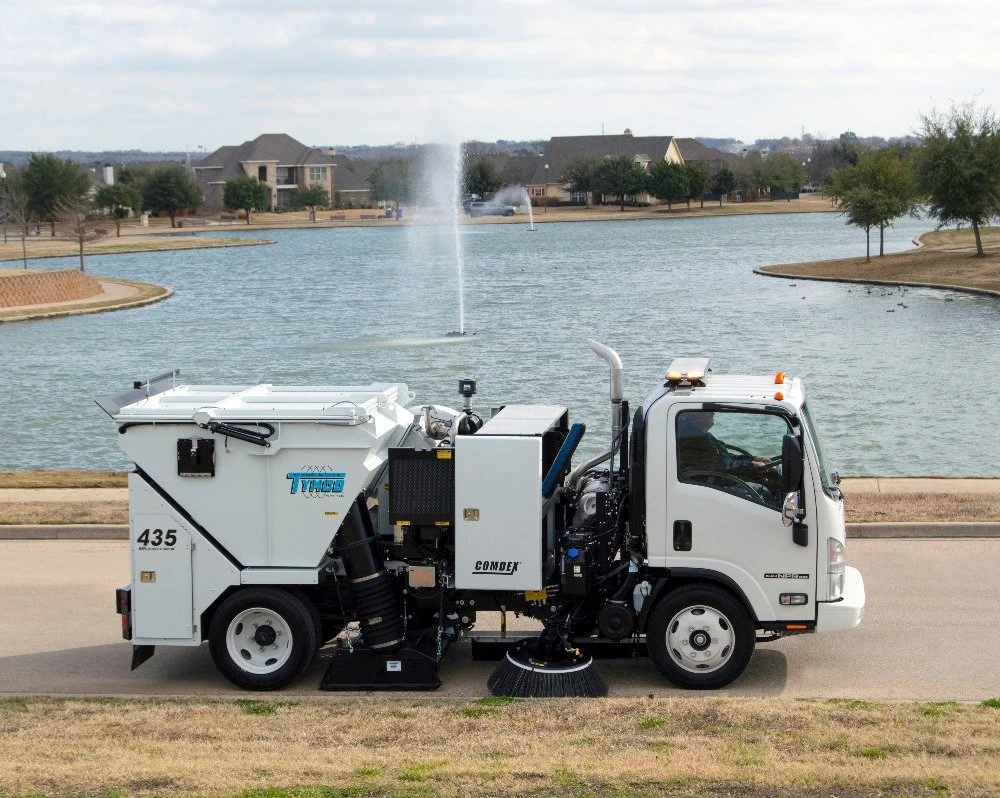

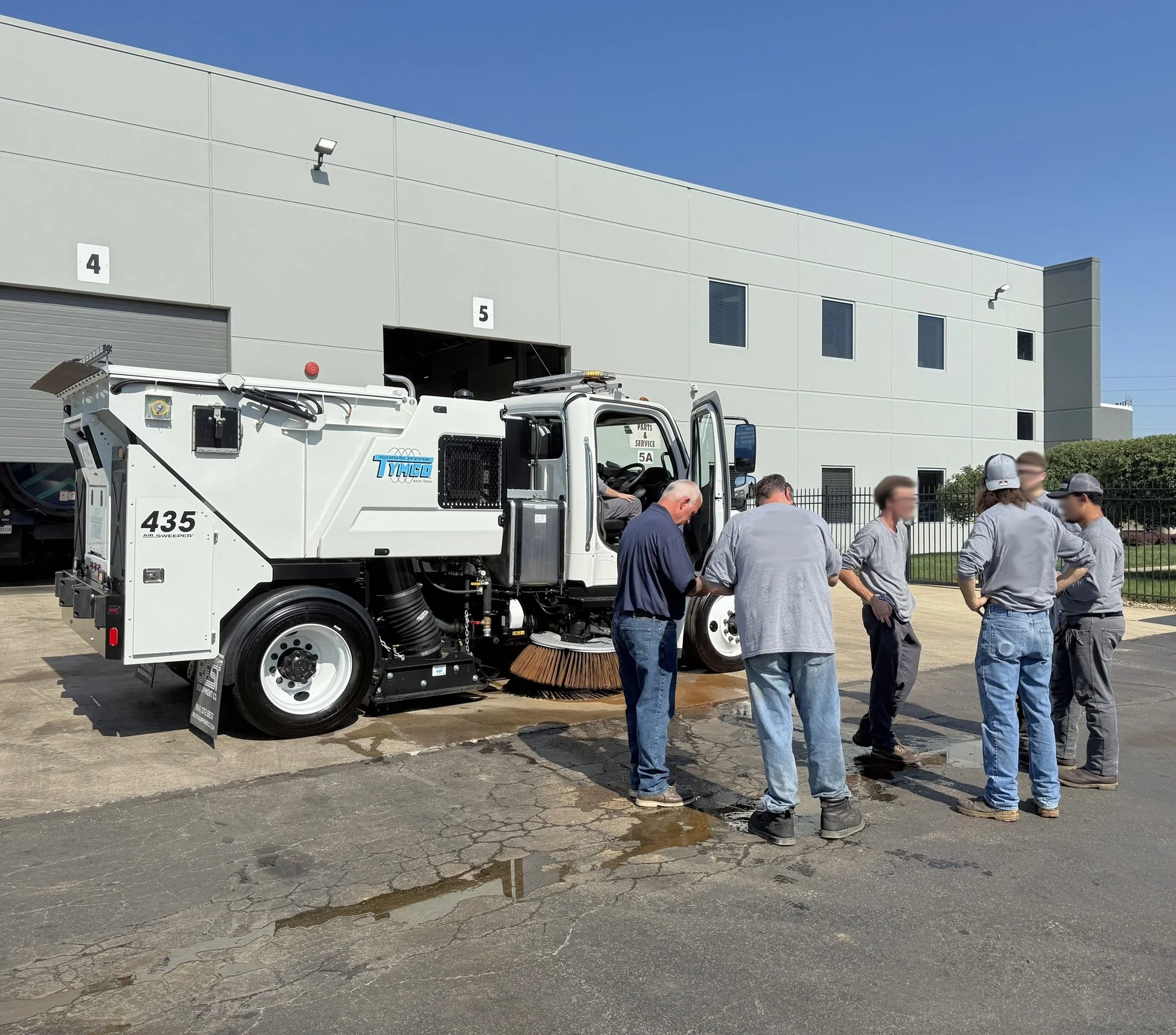

Model 435 Mid-Sized Street Sweeper

We introduced the TYMCO Model 435 over a decade ago, and our engineering design principles remain the same – deliver street sweeping performance in a parking lot sweeping package. Not only is it built using the high-efficiency, time-tested TYMCO Regenerative Air System that provides unprecedented reliability, but it also delivers incredible performance and an amazingly clean sweep.

• Regenerative Air System

• BlueLogic® Control System

• Engine - Kubota V2403-CR-TE4B FT4, 4 cyl.

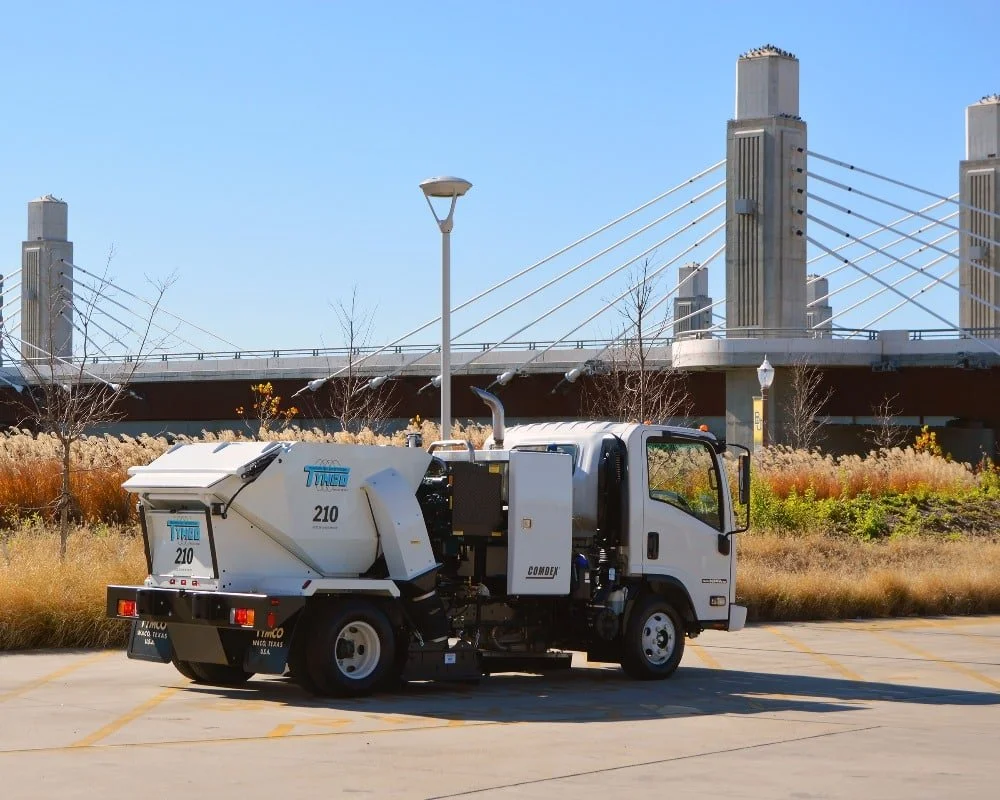

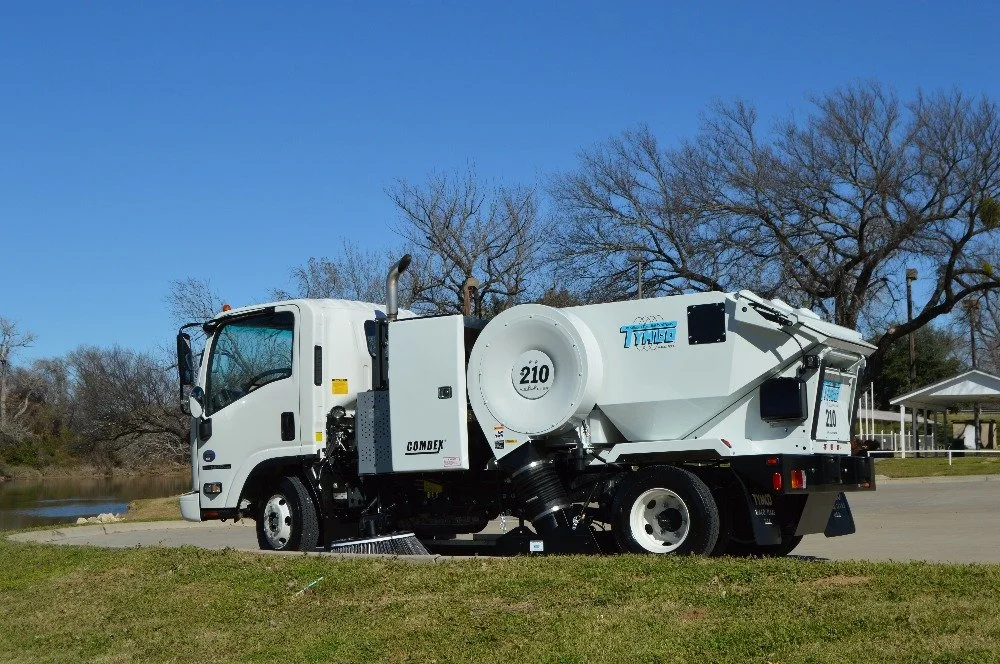

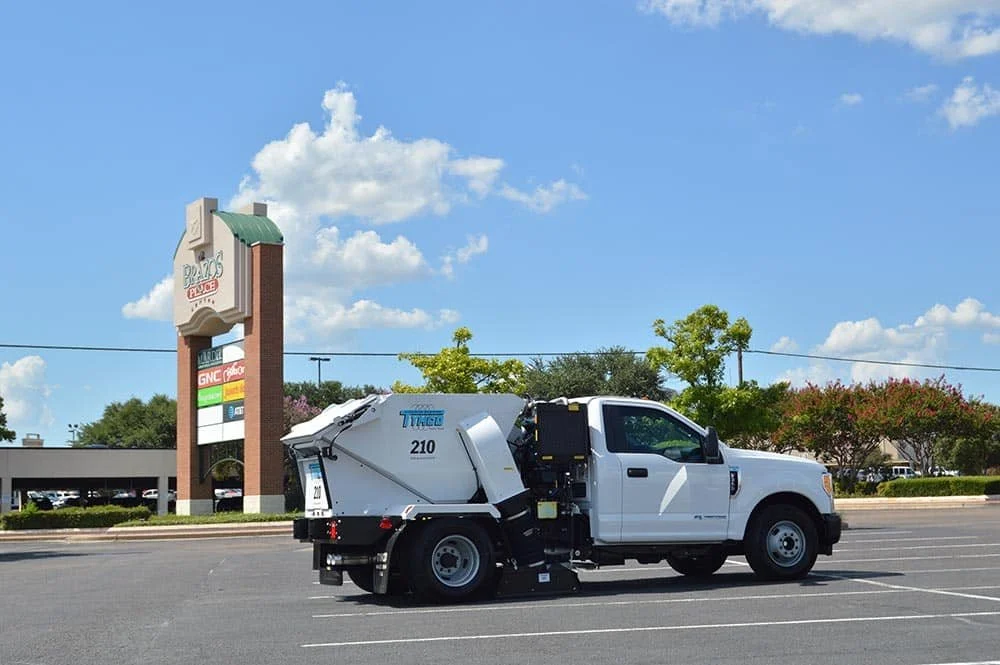

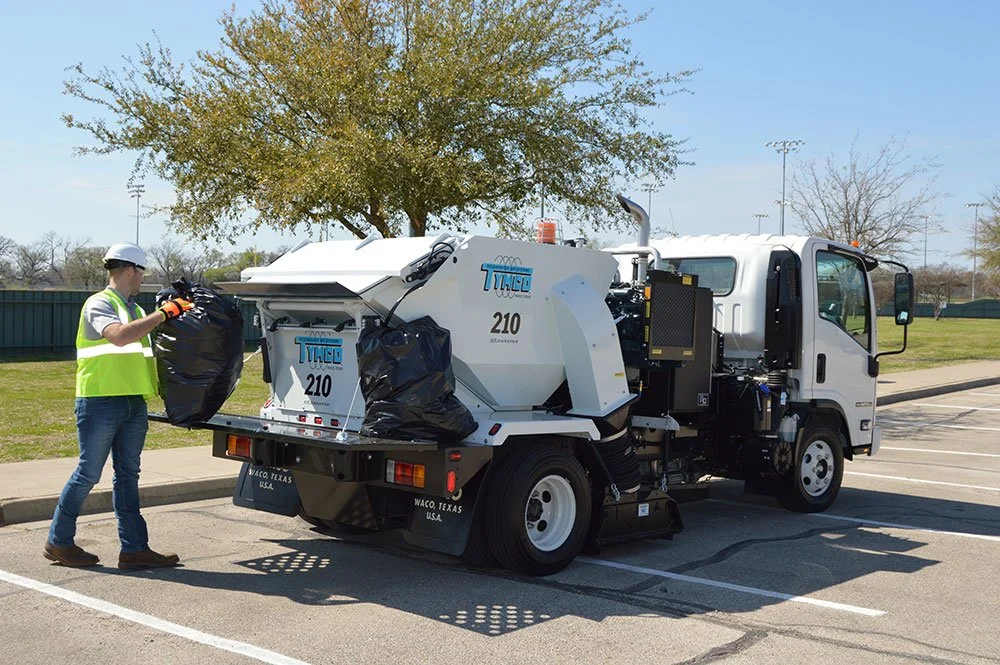

Model 210 & 210h Parking Lot SweeperS

The TYMCO Model 210 is the parking lot sweeper with both power and maneuverability that you need to get the job done. With a height clearance as low as 6’6” and a large 2.4 cubic yard hopper, the Model 210 is ideal for tackling a downtown parking garage or the largest of parking lots. The TYMCO Model 210h parking lot sweeper is powered by the TYMCO hDrivePower System. hDrive is an optimized hydraulic power system that gives Model 210h owners all the simplicity and low maintenance of sweeping without an auxiliary engine.

• mODEL 210h FEATURES THE hDrive®Power System (NO AUX ENGINE)

• Regenerative Air System

• BlueLogic® Control System

• MODEL 210 Engine - Kubota V2403-CR-TE4B FT4, 4 cyl.

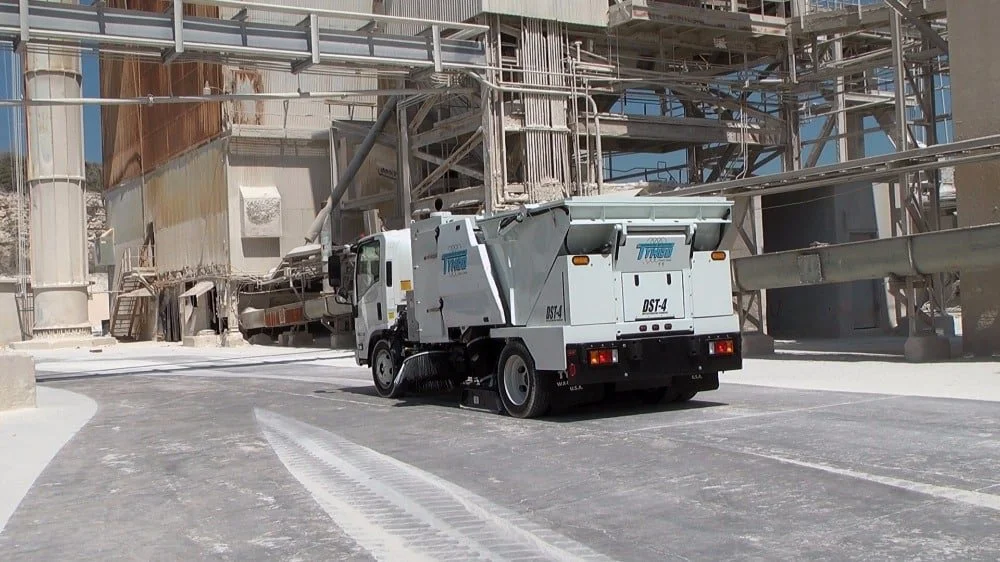

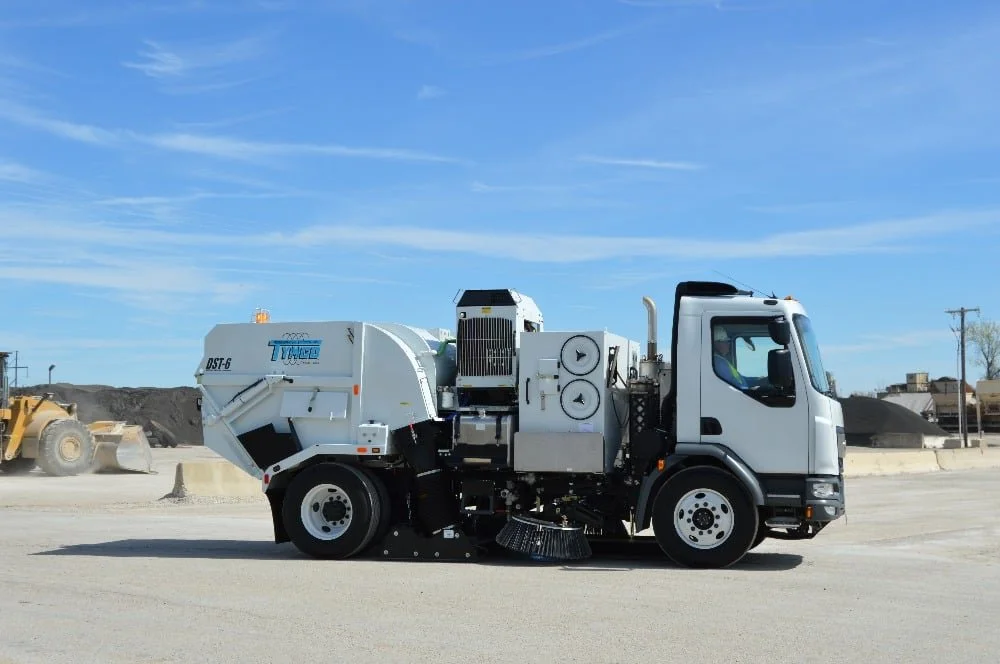

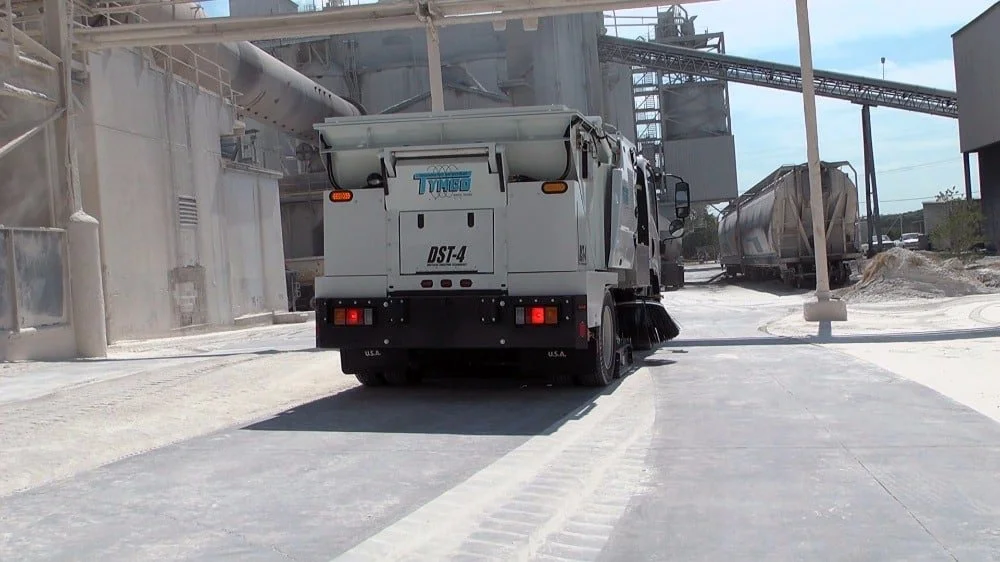

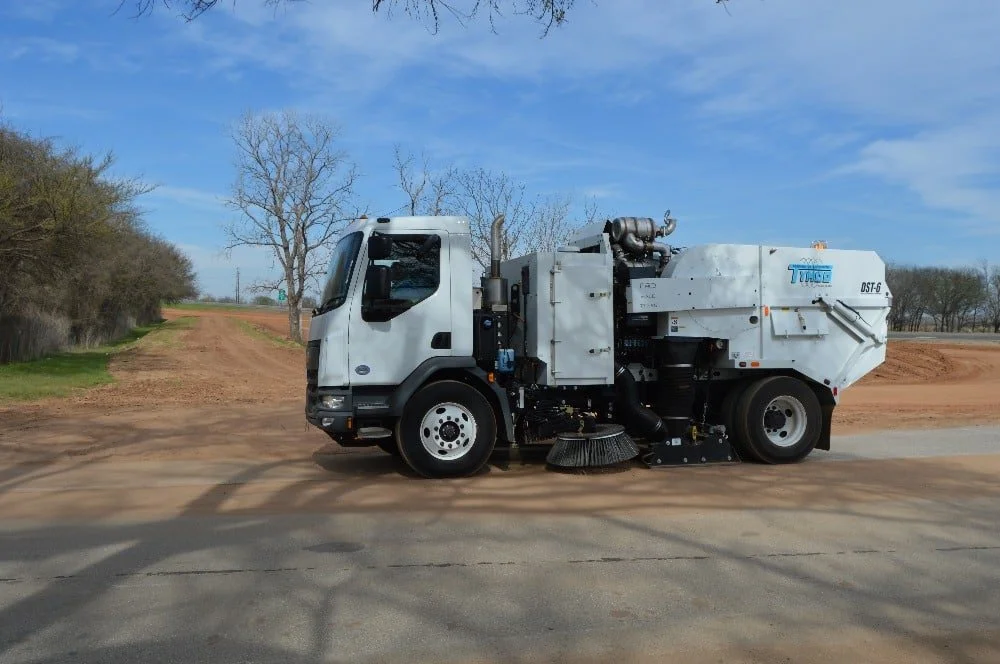

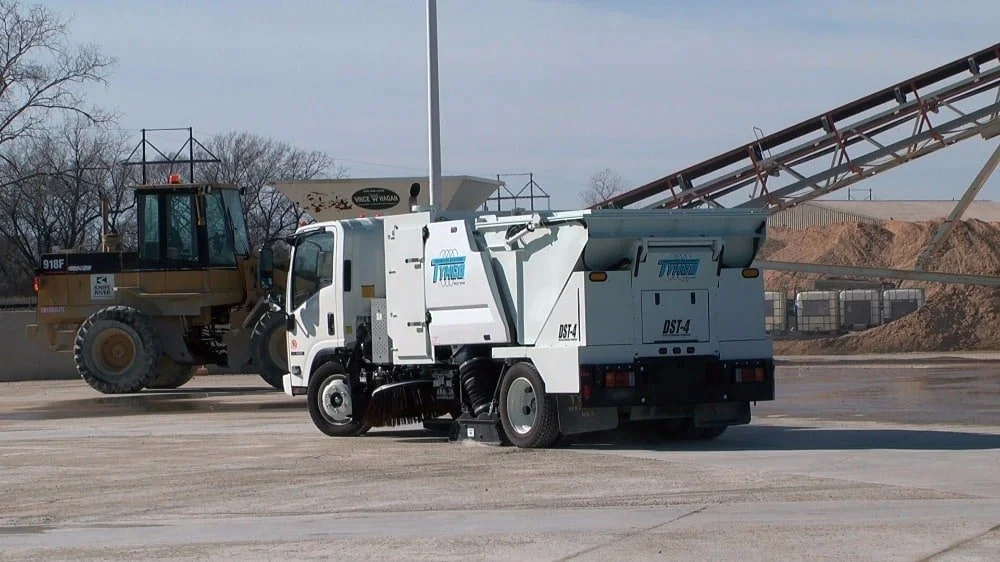

DST-4 & DST-6 DUSTLESS Street SweeperS

The DUSTLESS Street SweeperS remove dirt, dust and debris from the sweeping surface, and uses filters that have a Minimum Efficiency Reporting Value (MERV) 16 Rating, meaning they are able to capture a minimum of 95% of 0.30 micron and larger size particles, far exceeding PM10 requirements. The dustless features are engineered to allow the sweeper to perform in all types of weather conditions with no operator adjustments required.

• Regenerative Air System

• BlueLogic® Control System

• dst 4 Engine - Kubota V2403-CR-TE4B FT4, 4 cyl.

• dst 6 Engine - John Deere 4045 turbo FT4, 4 cyl.

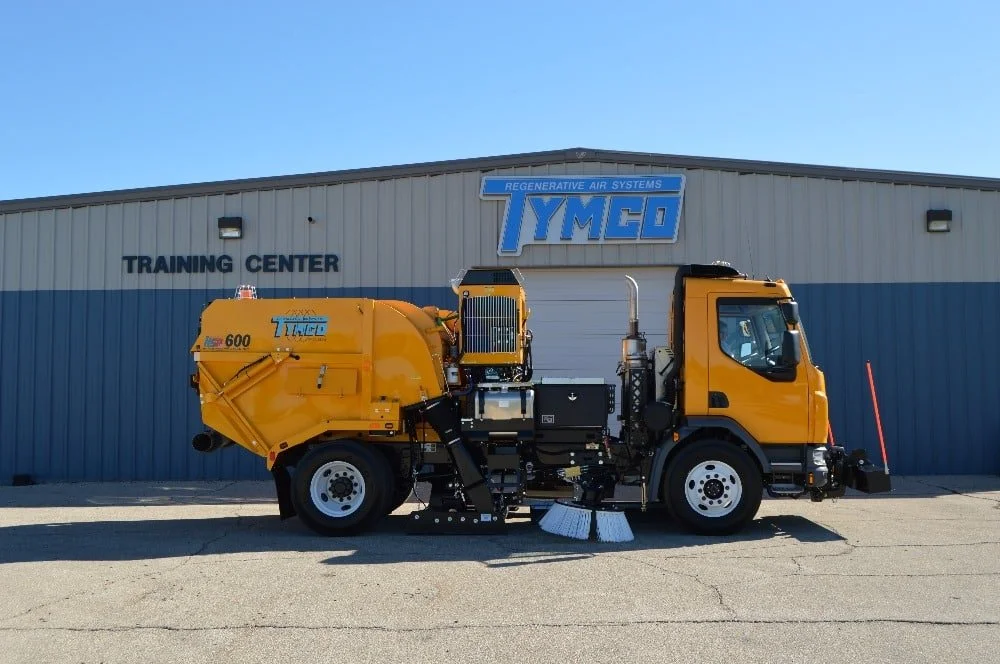

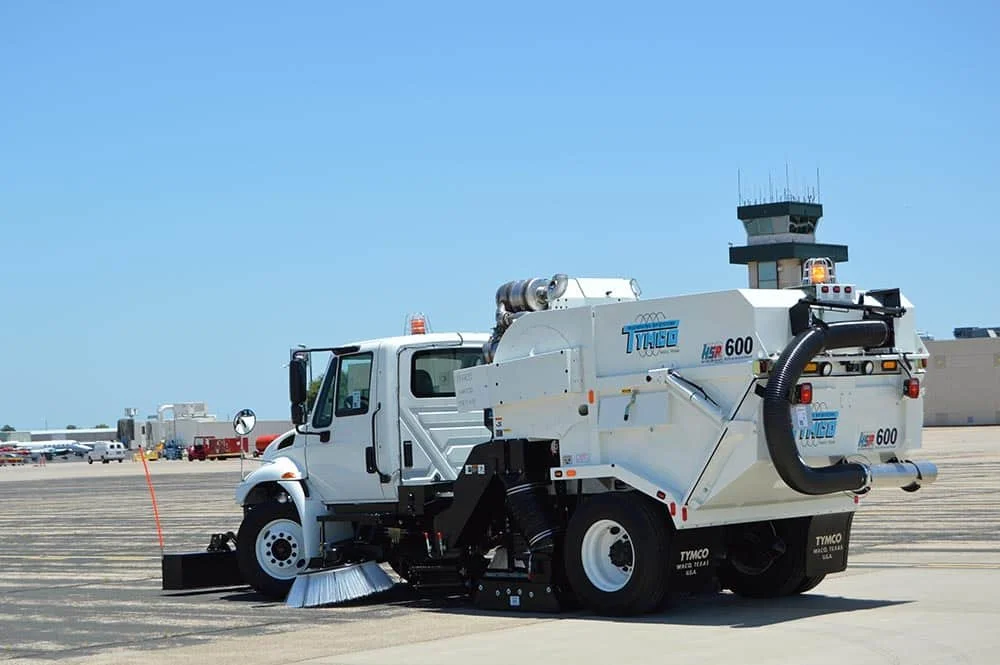

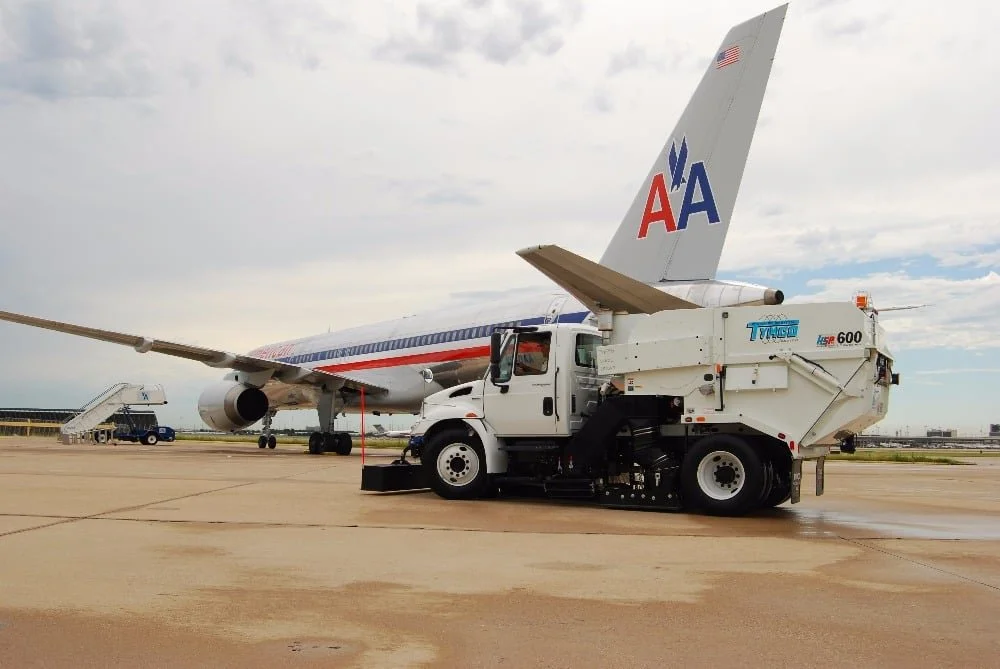

HSP Airport Runway Sweeper

Engineered specifically for superior control of Foreign Object Debris (FOD), TYMCO's Model HSP (High Speed Performance) Airport Runway Sweeper puts the power of a 250 mph controlled jet of air in your operators' hands. Without the cost and upkeep of main brooms, elevators or vacuums, the Model HSP blasts into crevices for unsurpassed cleaning of even the smallest FOD while prying up the heaviest debris, all at a speed today's busy airports demand.

• Regenerative Air System

• BlueLogic® Control System

• Engine - John Deere 4045 turbo FT4, 4 cyl.

• CNG OPTIONS

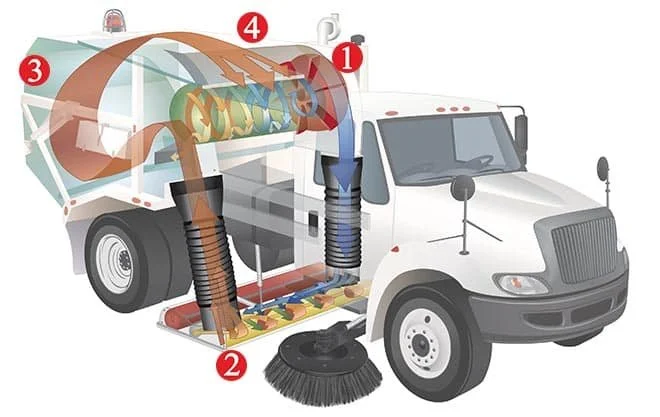

Regenerative Air System

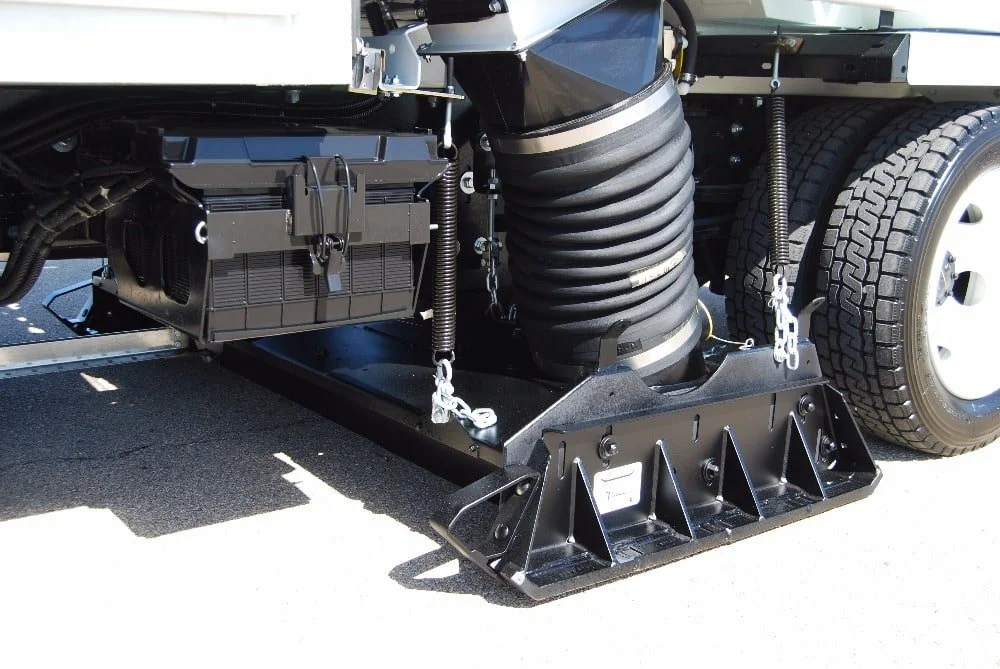

A TYMCO Regenerative Air Sweeper uses a controlled blast of air to dislodge debris from the surface. All debris picked up by the pick-up head is directed up the large diameter heavy duty suction hose into the hopper. TYMCO removes trash, dirt and fines from the entire area beneath the full-width pick-up head. Regenerative Air means a TYMCO never exhausts polluted air into the atmosphere like a vacuum sweeper.

1. The closed-loop Regenerative Air System uses the force of a high velocity controlled jet of Air created by the powerful blower wheel.

2. This jet of air blasts down and across the pick-up head onto the pavement and into the cracks forcing up into the air stream packed-on heavy debris as well as fine dust particles.

3. The debris-laden air stream is pulled into the large hopper, where the air loses velocity and the larger debris falls to the bottom. A screen at the top of the hopper prevents items such as leaves, paper, cans, and rocks from leaving the hopper and entering the centrifugal dust separator.

4. The patented centrifugal dust separator spins the air along the curved wall of the chamber until the micron-size dust particles are skimmed off into the hopper. Only clean air is returned to the blower to start the Regenerative Air cycle again. This closed-loop system means no dirty air is exhausted into the environment only to settle on the surface again.
